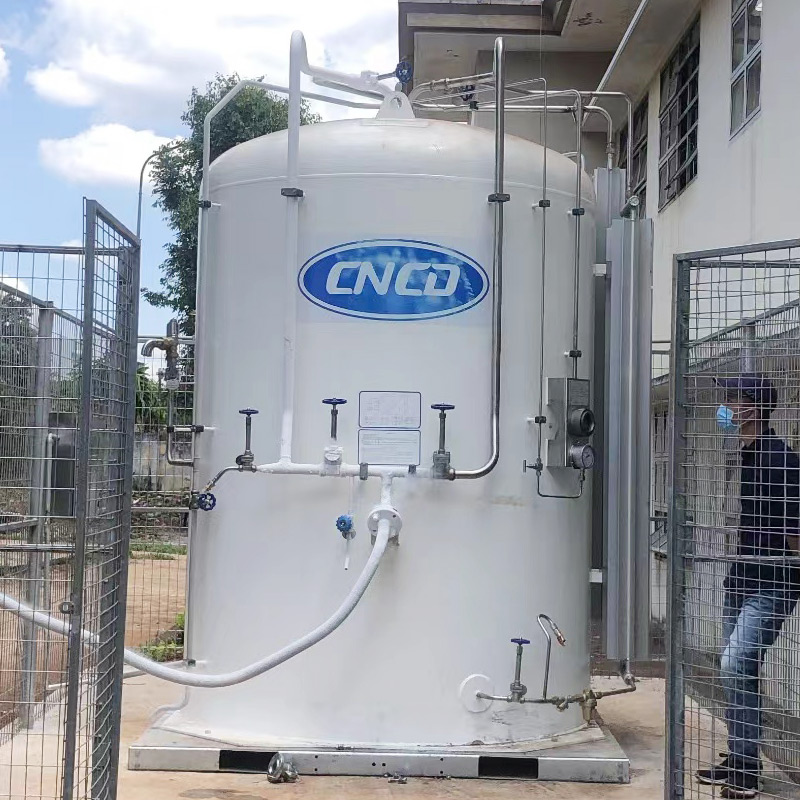

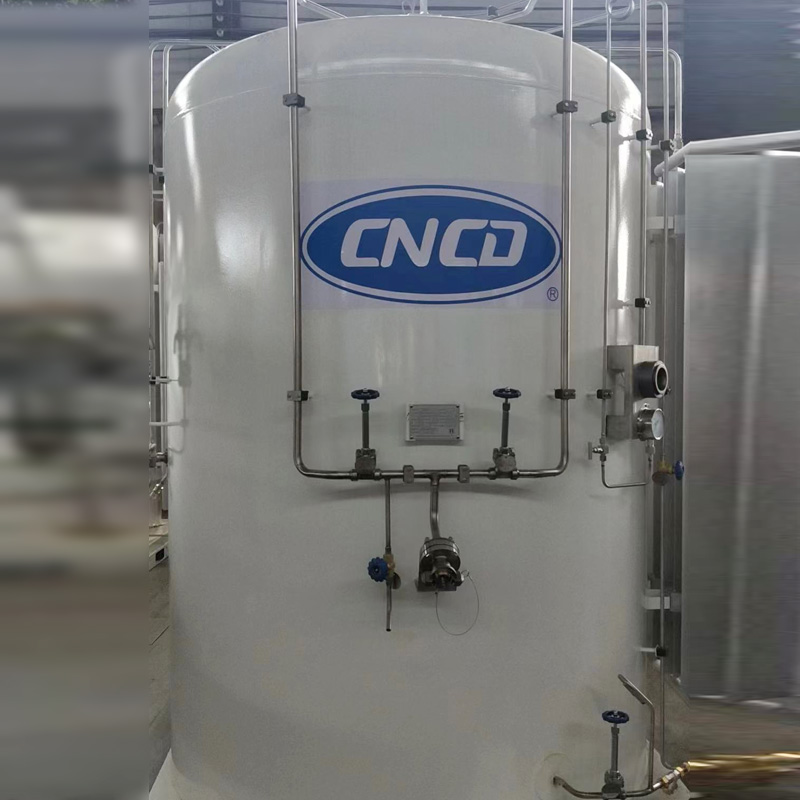

Microbulk tank is a pressure vessel that is used for filling and storing dangerous chemicals such as LO2, LAr, LN2, LCO2, and LNG.The maximum working pressures available are 0.8Mpa, 1.6Mpa, 2.5Mpa, and 3.5Mpa; the nominal volumes available are 1M3, 2M3, 3M3,5M3, 7.5M3, etc.
InquiryMicrobulk tanks are pressure vessels with inner and outer container dual structures. The inner container is made of S30408 stainless steel, suspended in the Q345R outer container with supporting devices. The space between the inner and outer container is wrapped by high vacuum heat-insulated Aluminum foil fiberglass material. Micro tank is suitable for transporting vaporized gases when it’s connected with a vaporizer. It has been widely used in a different fields.
1). The main performance indicators of MicroBulk Tank (small cryogenic storage tanks) are not lower than the technical level of conventional fixed-mode liquid storage tanks.
2). The process uses a monolithic pipe and container structure, which is most suitable for use in a limited space.
3). Gas purity can be reliably guaranteed.
4). The cryogenic liquid filling can be completed on-site, which better solves the shutdown caused by the gas supply.
| volume(m3) | working pressure(MPa) | working medium
|
dimension（mm）
|
net weigh(kg)
|
| 1m3 | 1.6 | LO2, LN2, LAr, LNG | 1300*1300*2326 | 720 |
| 2.5 | LO2, LN2, LAr, CO2 | 1300*1300*2326 | 720 | |
| 3.4 | LO2, LN2, LAr | 1300*1300*2326 | 1096 | |
| 2m3 | 1.6 | LO2, LN2, LAr, LNG | 1750*1750*2741 | 1440 |
| 2.5 | LO2, LN2, LAr, CO2 | 1750*1750*2741 | 1560 | |
| 3.4 | LO2, LN2, LAr | 1600*1600*2390 | 1780 | |
| 3m3 | 1.6 | LO2, LN2, LAr, LNG | 1850*1850*2869 | 1814 |
| 2.5 | LO2, LN2, LAr, CO2 | 1850*1850*2869 | 1990 | |
| 3.4 | LO2, LN2, LAr | 1850*1850*2869 | 2408 | |
| 5m3 | 0.8 | LNG | 2300*2300*3160 | 2426 |
| 1.6 | LO2, LN2, LAr, LNG | 2150*2150*3095 | 2757 | |
| 2.5 | LO2, LN2, LAr, CO2 | 2150*2150*3095 | 3102 | |
| 3.4 | LO2, LN2, LAr | 2150*2150*3095 | 3483 | |
| 7.5m3 | 1.6 | LO2, LN2, LAr, LNG | 2350*2350*3210 | 4326 |
Application: This series of Dewar Cylinders are widely used in Manufacturing Plant, Food & Beverage Factory, Construction works, Energy & Mining, Other.
After-Sales Service: We provide after-sales service for one year. We also have branches in Vietnam, which can provide door-to-door installation and after-sales service for local and surrounding countries.
