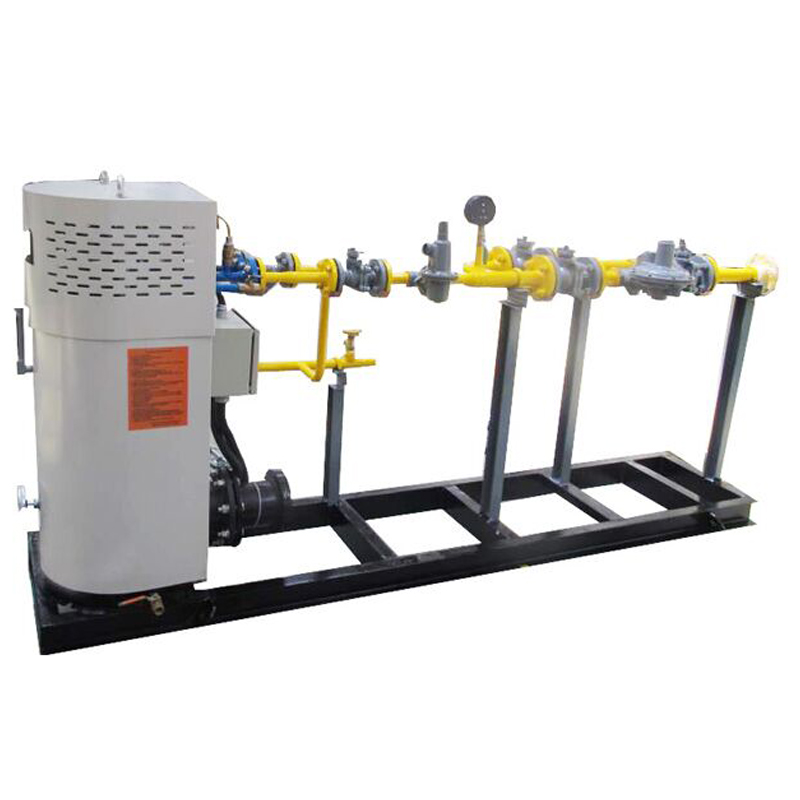

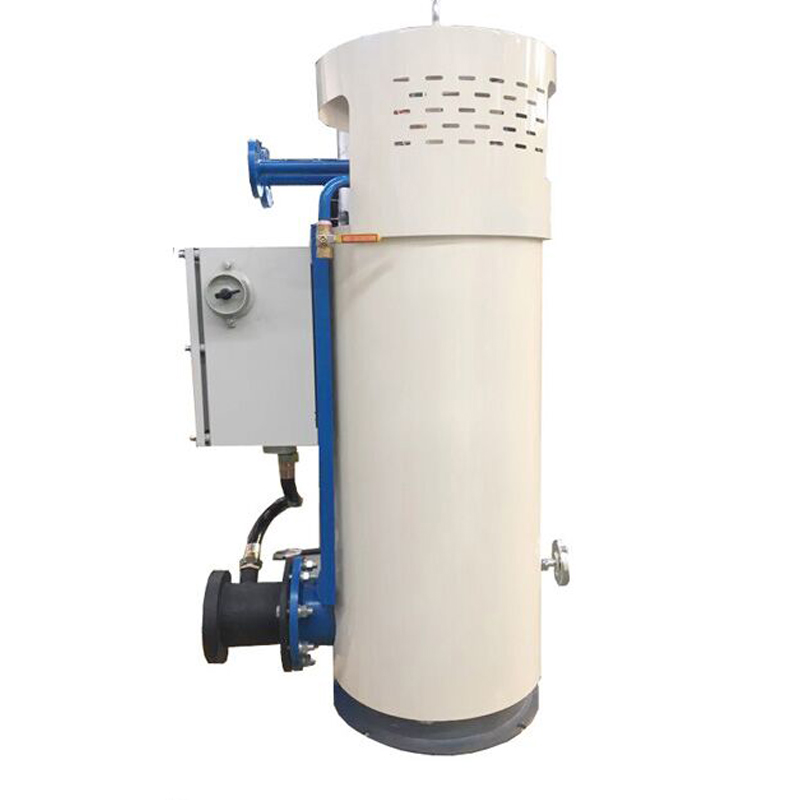

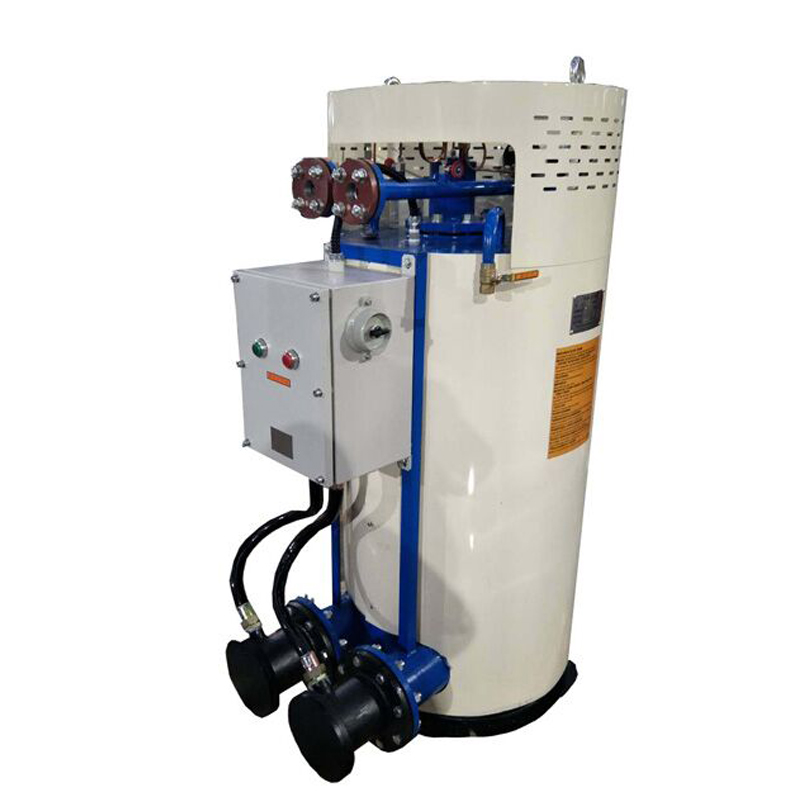

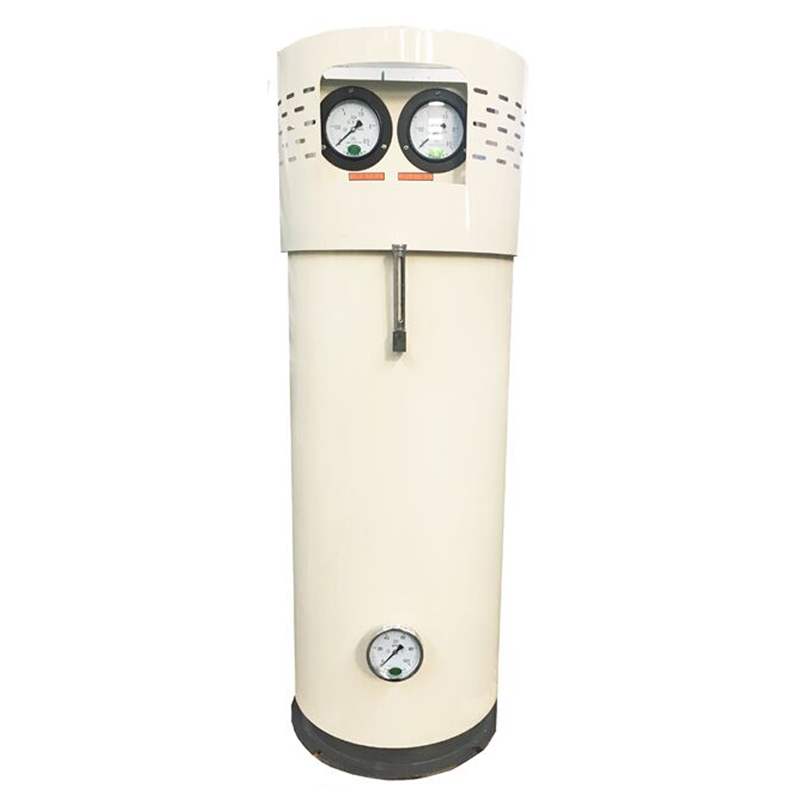

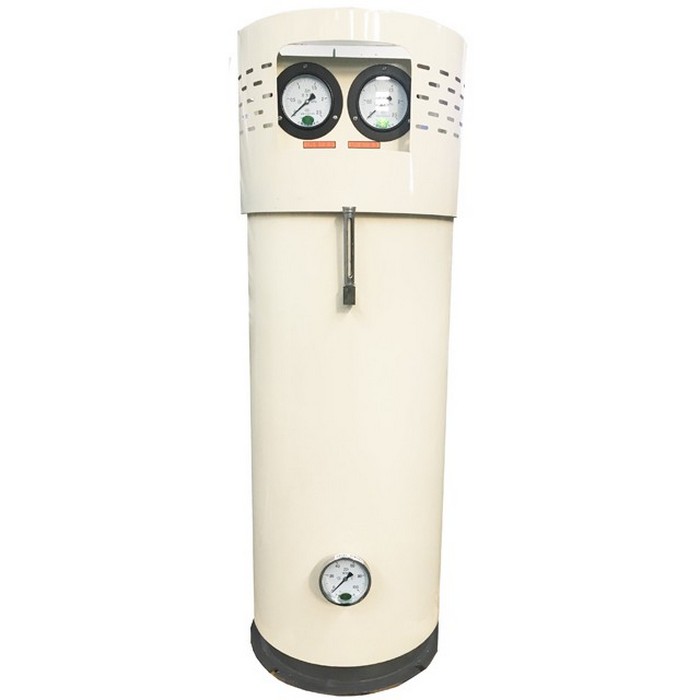

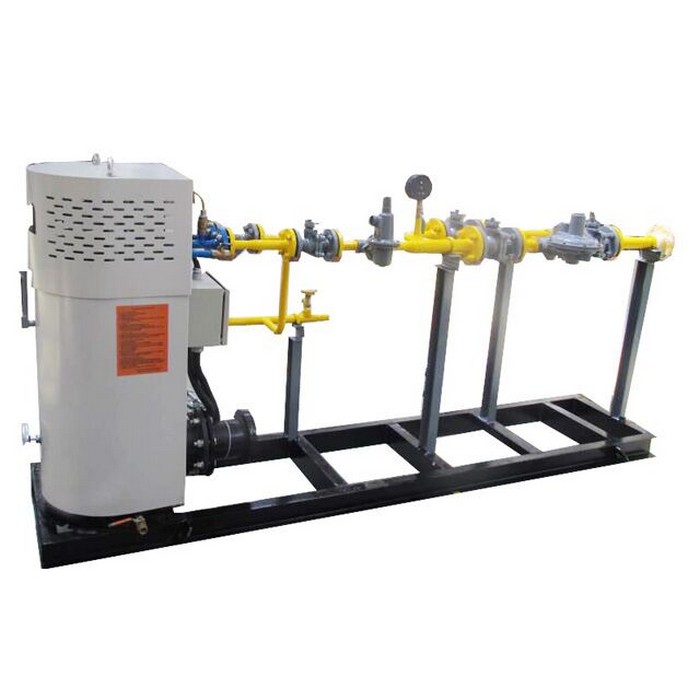

LPG electric heating vaporizer is a safe, reliable automatic heat exchange equipment, LPG electric heating vaporizer can be liquefied petroleum gas through full heat exchange so that the gasification rate is higher than the natural gasification, to the user’s need stable flow and pressure.
Inquiry1.For the materials of the tunnel body, you can choose carbon steel or stainless steel
2.The acousto-optic alarm of the temperature of the exits
3.Emergency cutting off equipment
4.The whole equipment is picking designed
5.We can design and produce according to the standard of electronic grade
6.It can use siemens electrical apparatus
7.It can adopts explosion prevention electric cabinet and explosion prevention electric heating equipment
| Model | YD-50 | YD-100 | YD-150 | YD-200 | YD-300 | YD-400 | YD-500 |
| Vaporization capacity(kg/h) | 50 | 100 | 150 | 200 | 300 | 400 | 500 |
| Power voltage(V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Power(KW) | 8 | 15 | 23 | 30 | 46 | 60 | 75 |
| Max Working pressure
(Mpa) |
1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
| Working temperature
(℃) |
60±2.5℃
|
60±2.5℃
|
60±2.5℃
|
60±2.5℃
|
60±2.5℃
|
60±2.5℃
|
60±2.5℃
|
| opening pressure of safety valve
(Mpa) |
1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Heat exchange medium | water
|
water
|
water
|
water
|
water
|
water
|
water
|
| Inlet size | DN15 | DN20 | DN20 | DN25 | DN25 | DN25 | DN25 |
| Outlet size | DN20
|
DN25
|
DN25
|
DN25
|
DN40 | DN40 | DN50
|
| Weight
(kg) |
110 | 110 | 150 | 180 | 240 | 280 | 320 |
Application: This series of LPG Electric Heating Vaporizers are Energy & Mining.
After-Sales Service: We provide after-sales service for one year. We also have branches in Vietnam, which can provide door-to-door installation and after-sales service for local and surrounding countries.
