Liquid nitrogen tanks can generally be divided into liquid nitrogen storage tanks and liquid nitrogen transport tanks. The storage type liquid nitrogen tank is mainly used for static storage of indoor liquid nitrogen, and should not be used for long-distance transportation under working conditions; the transport type liquid nitrogen tank has a special shock-proof design in order to meet the transportation conditions. In addition to being stored at rest, it can also be used for transportation in the state of being filled with liquid nitrogen, but severe collisions and vibrations should also be avoided.
Inquiry1.Made of high strength aluminum alloy, the liquid nitrogen tank is light
2.High vacuum multilayer insulation design
3.Flexible handle, easy to carry
4.Lock cover is optional to protect the sample stored in liquid nitrogen tank

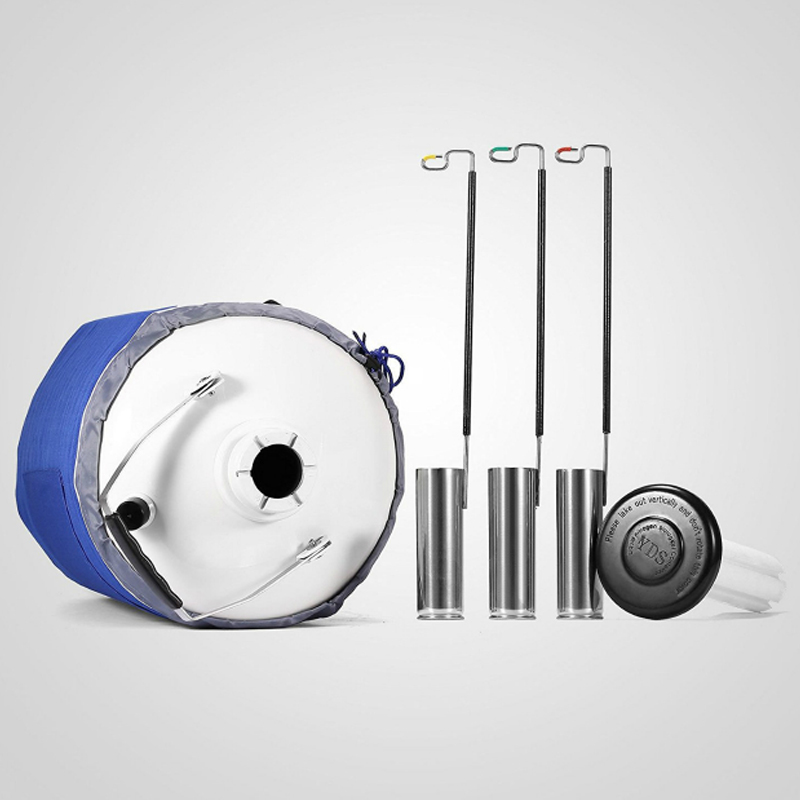

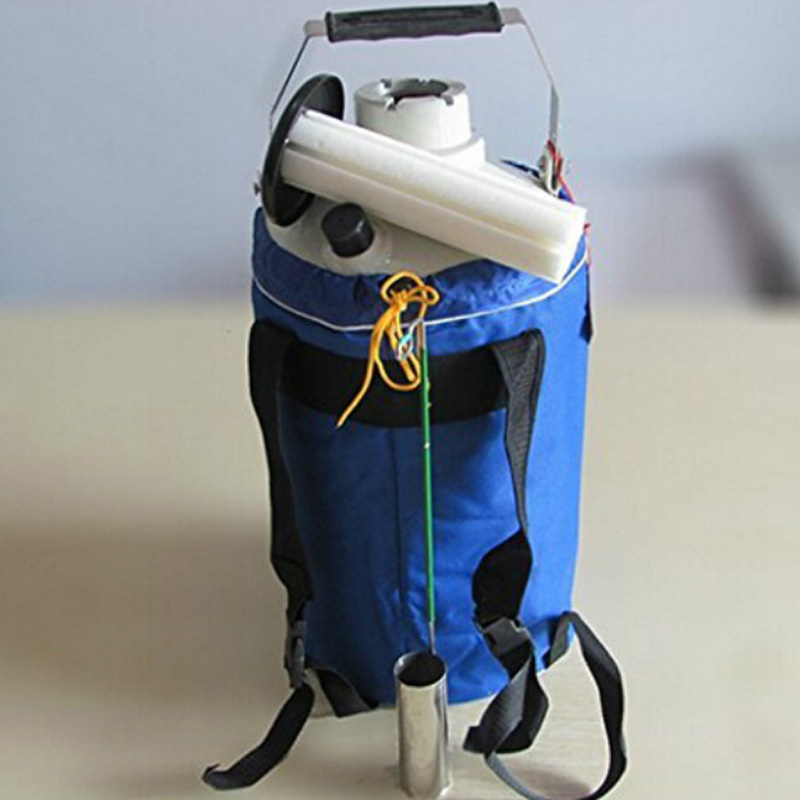

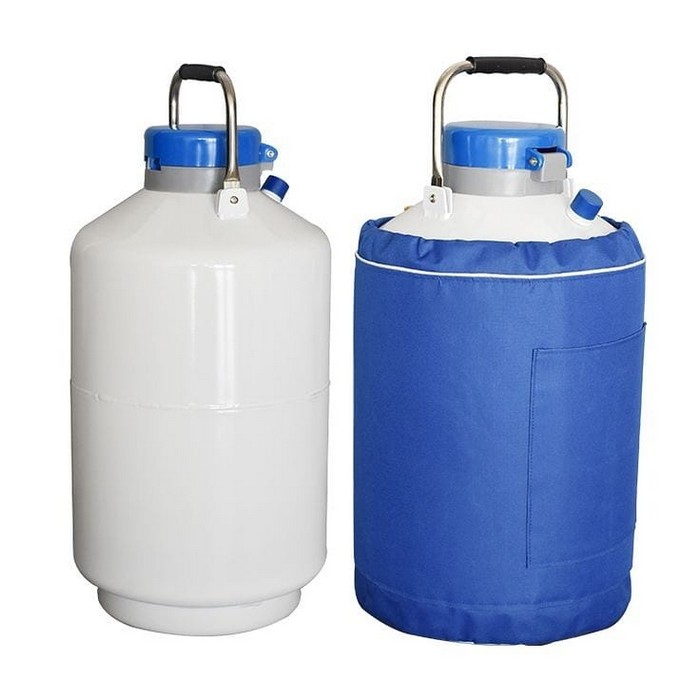

5. It is equipped with a protective cover to facilitate the carrying of liquid nitrogen tank and to prevent the tank from bumping in the process of use

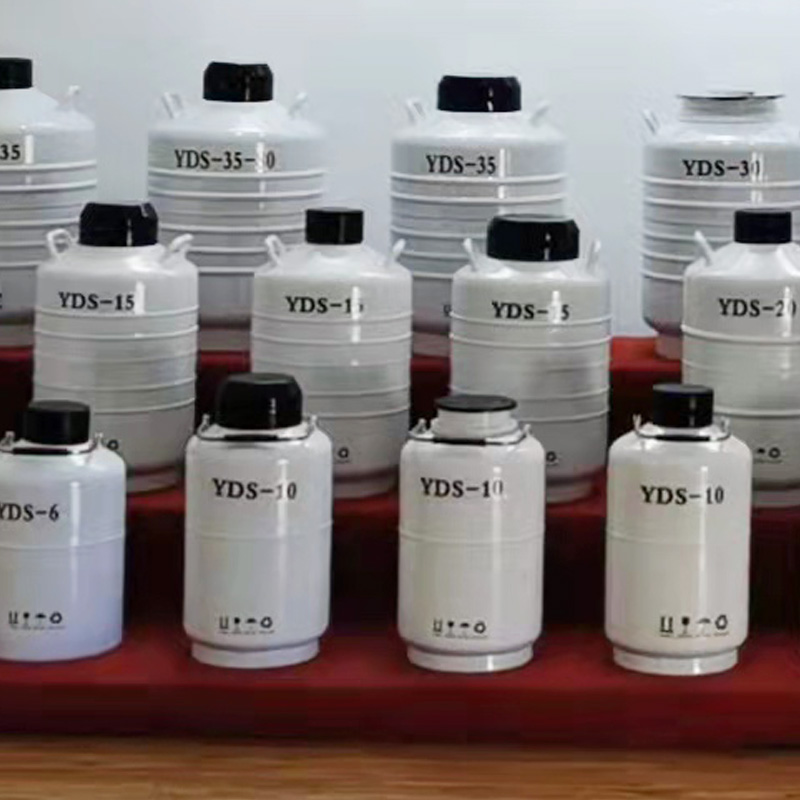

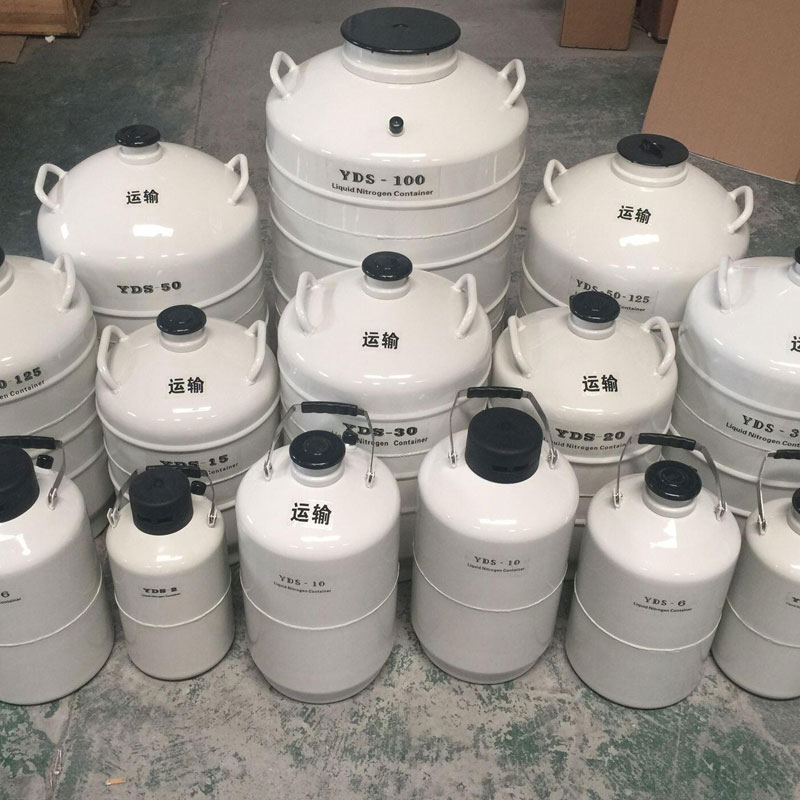

| Model
|
Volume
(L) |
caliber
(mm) |
diameter
(mm) |
height
(mm) |
Empty weight
(kg) |
| YDS-2 | 2 | 35 | 220 | 430 | 2.8 |
| YDS-3 | 3 | 50 | 220 | 430 | 3.2 |
| YDS-6 | 6 | 50 | 300 | 510 | 5 |
| YDS-10 | 10 | 50 | 300 | 550 | 5.4 |
| YDS-10-80 | 10 | 80 | 300 | 542 | 5.6 |
| YDS-10-125 | 10 | 125 | 300 | 538 | 5.7 |
| YDS-15 | 15 | 50 | 360 | 603 | 8.1 |
| sYDS-15-80 | 15 | 80 | 360 | 586 | 8.2 |
| YDS-15-125 | 15 | 125 | 360 | 570 | 8.6 |
| YDS-20 | 20 | 50 | 360 | 607 | 8.6 |
| YDS-20-80 | 20 | 80 | 360 | 595 | 8.8 |
| YDS-20-125 | 20 | 125 | 360 | 588 | 8.8 |
| YDS-30 | 30 | 50 | 435 | 680 | 14 |
| YDS-30-80 | 30 | 80 | 435 | 655 | 14 |
| YDS-30-125 | 30 | 125 | 435 | 660 | 14 |
| YDS-30-210 | 30 | 210 | 435 | 658 | 14.7 |
| YDS-30B | 30 | 50 | 435 | 680 | 14.5 |
| YDS-35 | 35 | 50 | 435 | 690 | 15.3 |
| YDS-35B | 35 | 50 | 435 | 690 | 15.8 |
| YDS-50B | 50 | 50 | 495 | 855 | 19.5 |
| YDS-50B-80 | 50 | 80 | 495 | 850 | 19.6 |
| YDS-50B-125 | 50 | 125 | 495 | 842 | 20 |
| YDS-50B-210 | 50 | 210 | 495 | 840 | 20.5 |
Application: This series of Dewar Cylinders are widely used in Food & Beverage Factory, Farms, Food Shop, Energy & Mining, Food & Beverage Shops, Biological.
After-Sales Service: We provide after-sales service for one year. We also have branches in Vietnam, which can provide door-to-door installation and after-sales service for local and surrounding countries.
