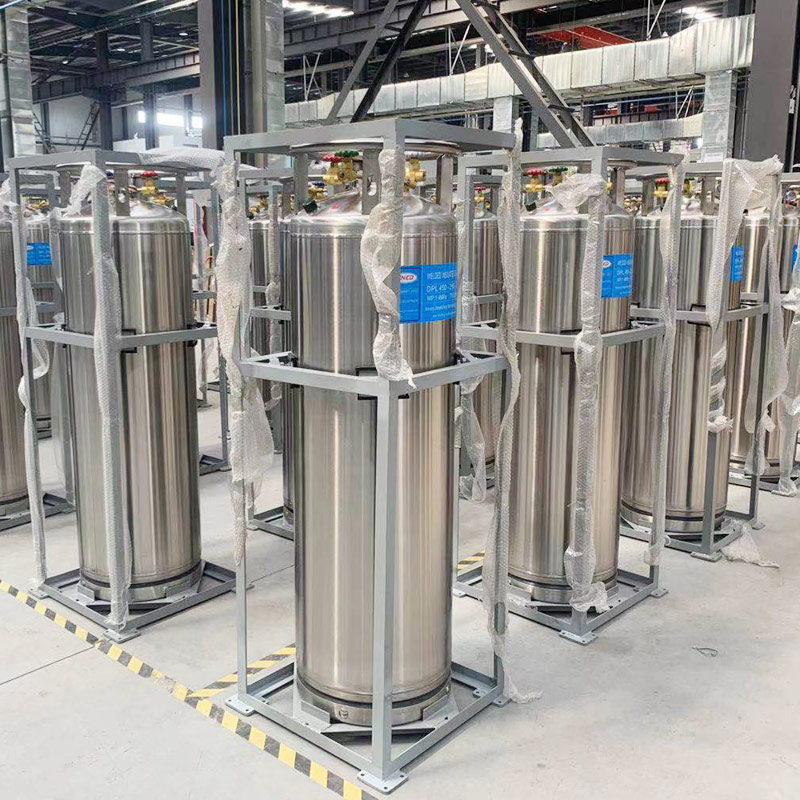

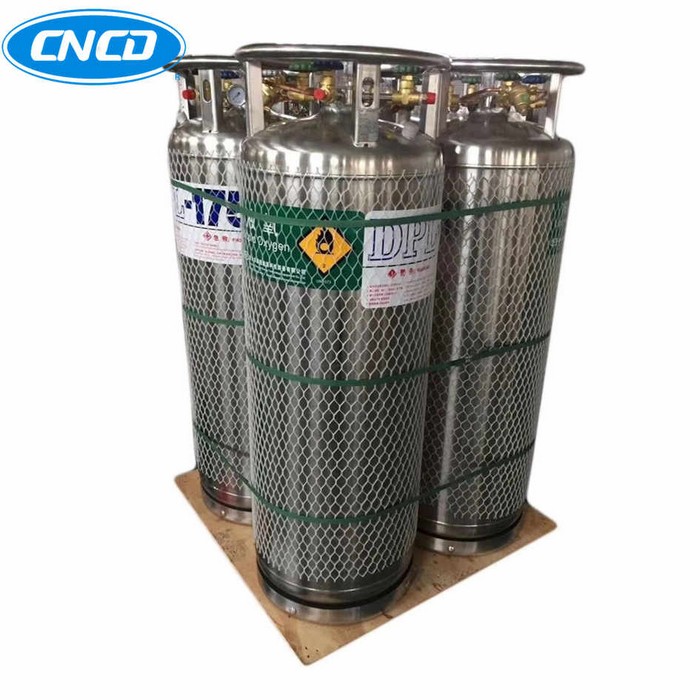

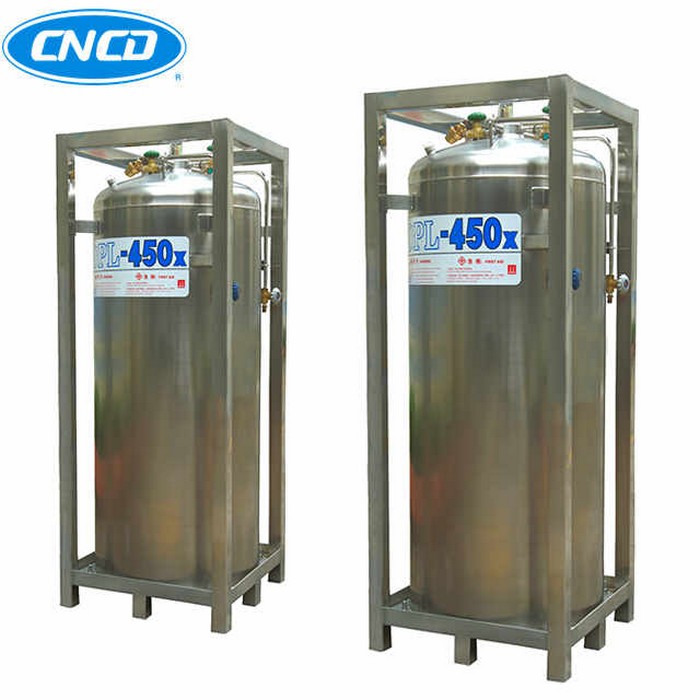

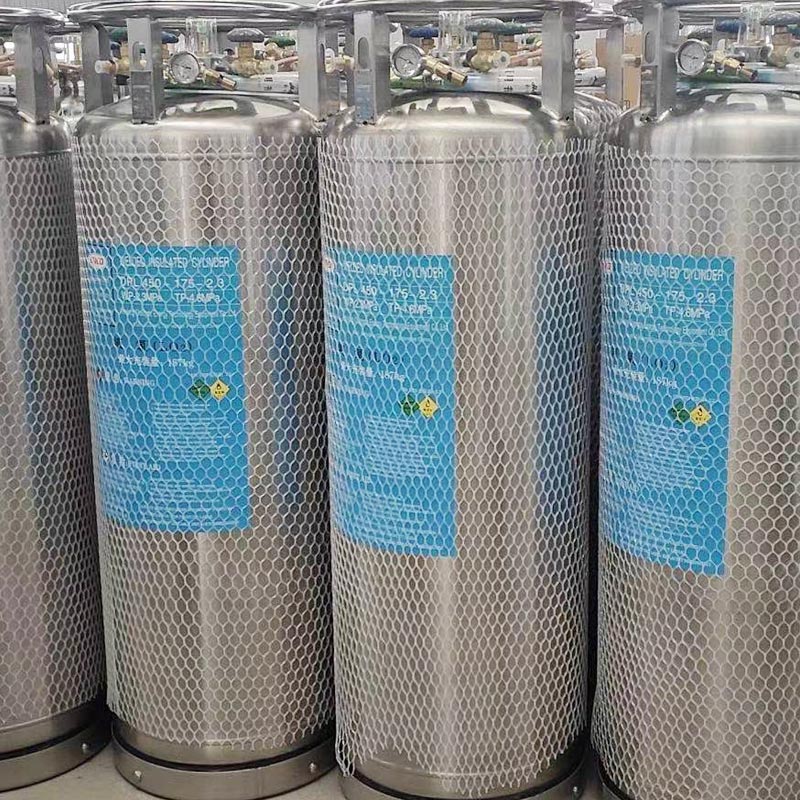

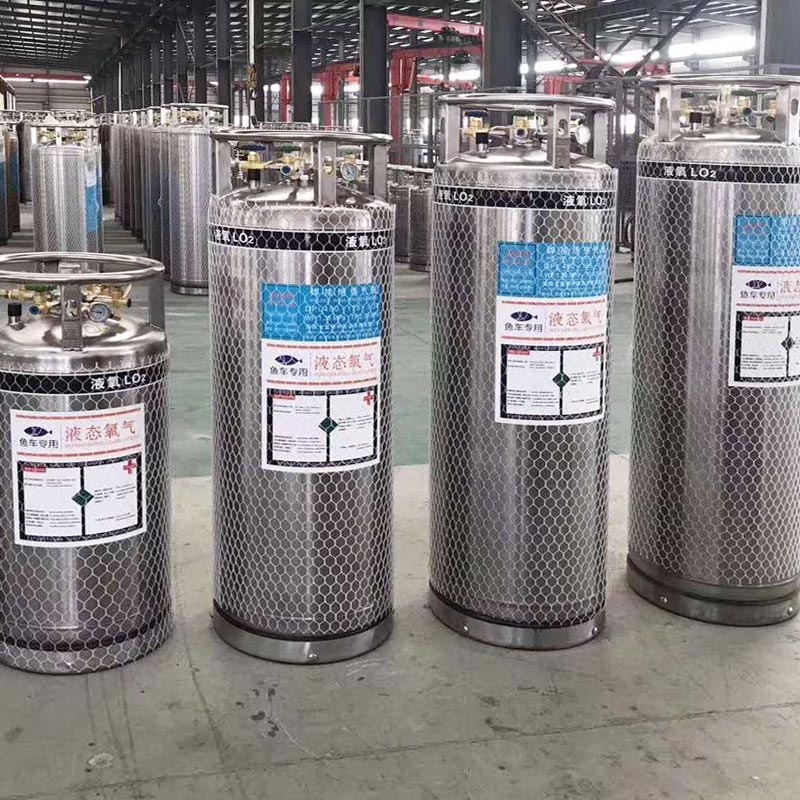

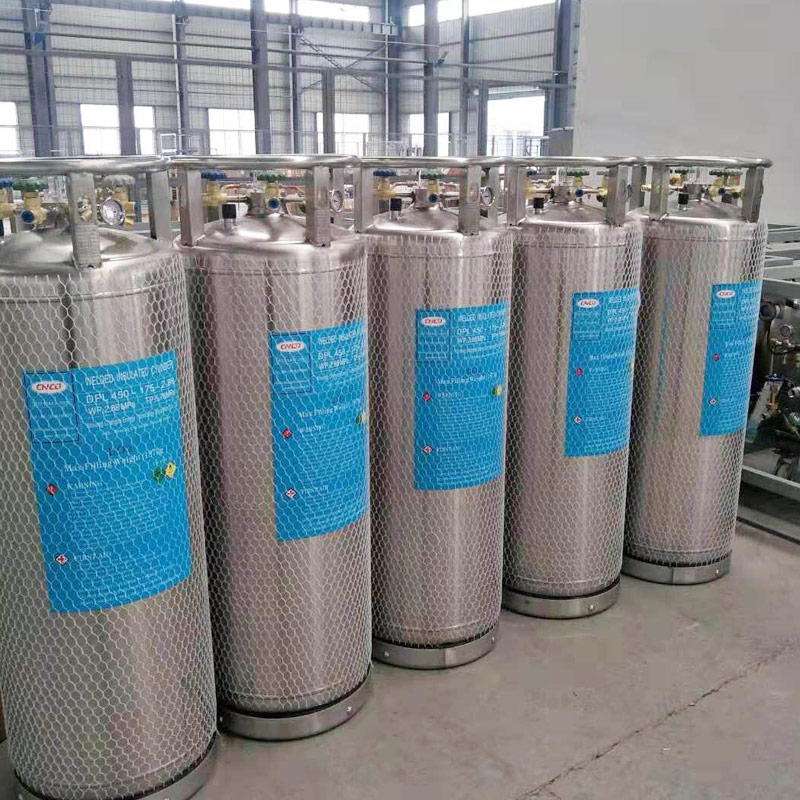

DPL series dewar cylinder is a kind of high-performance vacuum insulated cylinder, which is used to store and transport cryogenic liquid oxygen, nitrogen, argon, carbon dioxide, liquefied natural gas, etc. DPL series dewar cylinder can be used for road transportation of cryogenic liquid, and also can be used for on-site storage and supply. Long storage time, wide range of applications.
Inquiry1.Mainly used in storage and transportation of liquid oxygen, liquid nitrogen, liquid argon, and liquefied natural gas
2.Adopted high multi-layer insulation method to ensure the low evaporation rate.
3. Inner vaporizer provides a 10Nm3/h stable continuous gas.
4.Solar installation use in the priority of gas-pressure and gas space.
5.Unique design of damping ring meets the needs of frequent transportation.
6.Suitable for electronics, research, chemical industry, welding, and LNG supply industries.
| Specifications | |||
| Product model | DPL450-175 | DPL450-195 | DPL450-210 |
| volume(L) | 175 | 195 | 210 |
| Working Pressure
(MPa) |
1.4/2.0 | 1.4/2.0 | 1.4/2.0/2.88 |
| Size(D×H)mm | Φ508×1500 | Φ508×1626 | Φ508×1720 |
| Empty weight(kg) | 117/135 | 124/144 | 131/153/173 |
| Evaporation rate (Liquid nitrogen)
|
≤2.1%
|
≤2.0%
|
≤2.0%
|
| Maximum filling weight:Liquid oxygen
(kg) |
179 | 200 | 215 |
| Maximum filling weight:Liquid nitrogen
(kg) |
127 | 142 | 153 |
| Maximum filling weight:Liquid nitrogen
(kg) |
220 | 245 | – |
Application: This series of Dewar Cylinders are Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Construction works , Energy & Mining.
After-Sales Service: We provide after-sales service for one year. We also have branches in Vietnam, which can provide door-to-door installation and after-sales service for local and surrounding countries.
